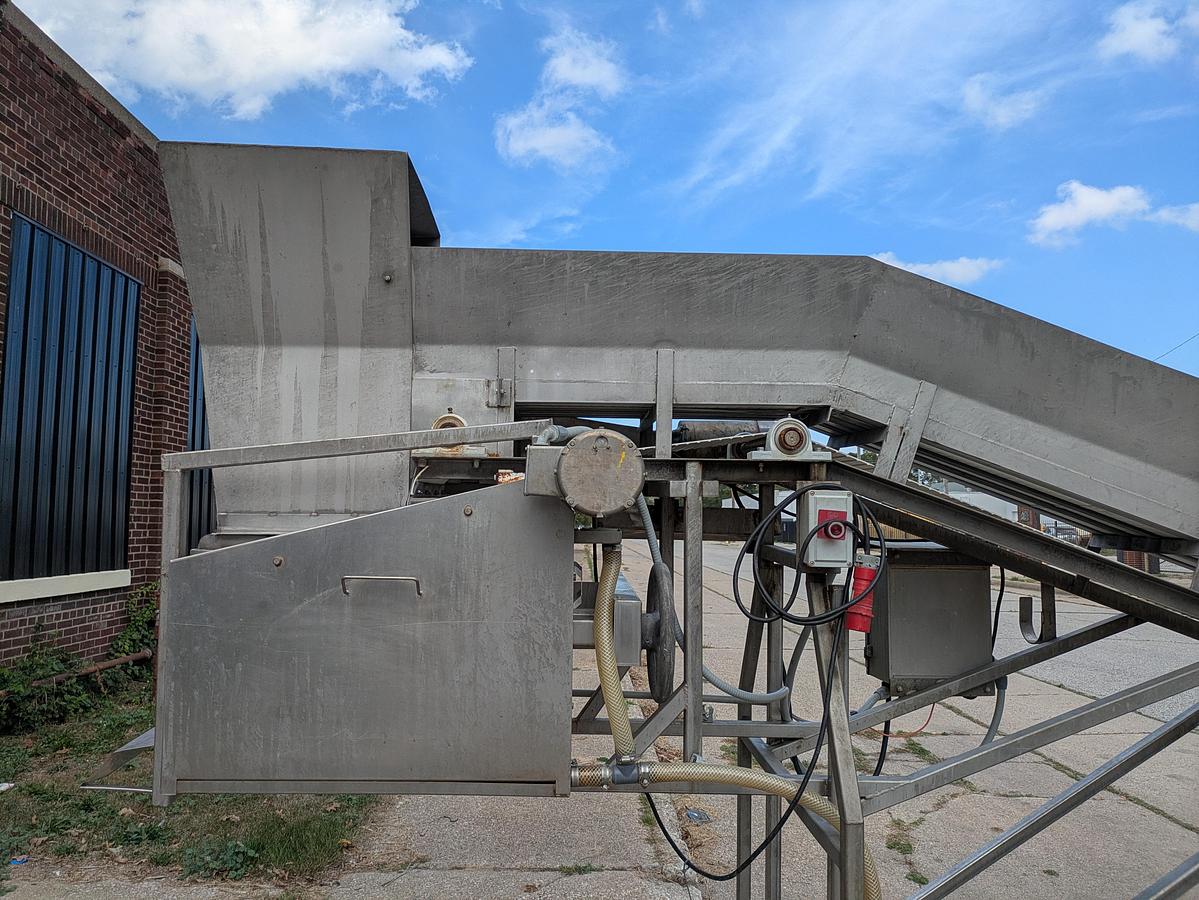

elevator with Key technology cluster breaker

elevator/cluster breaker

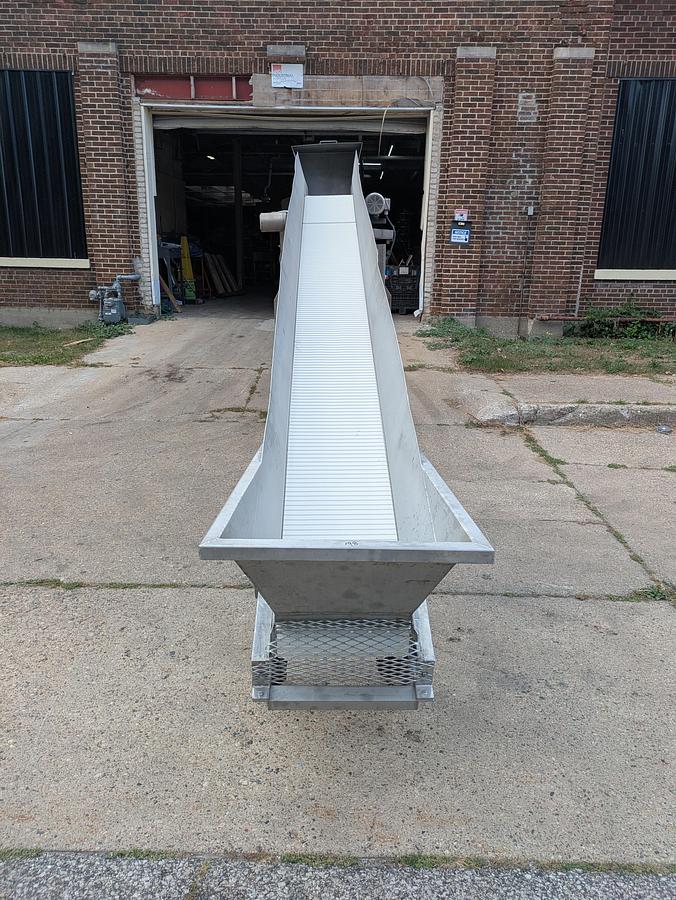

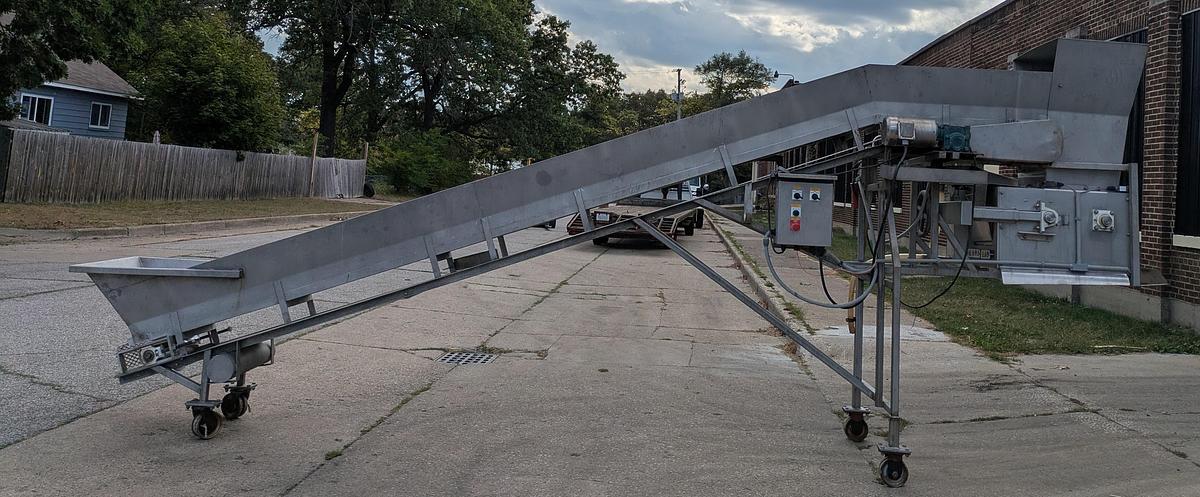

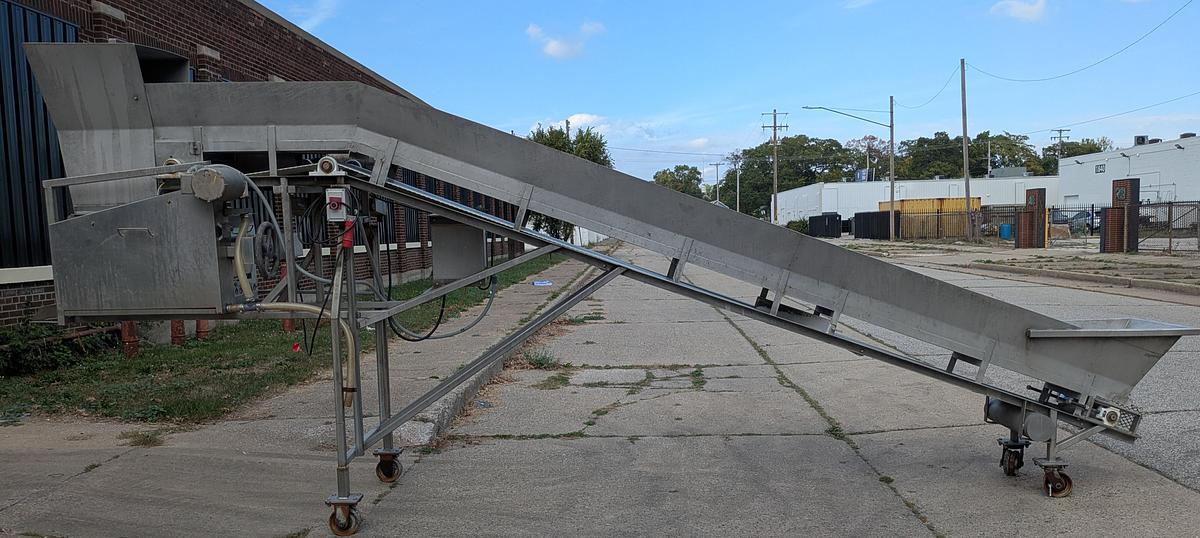

20' long elevator conveyor 16" wide with 14" side walls

infeed height 38" outfeed 44" overall height 100"

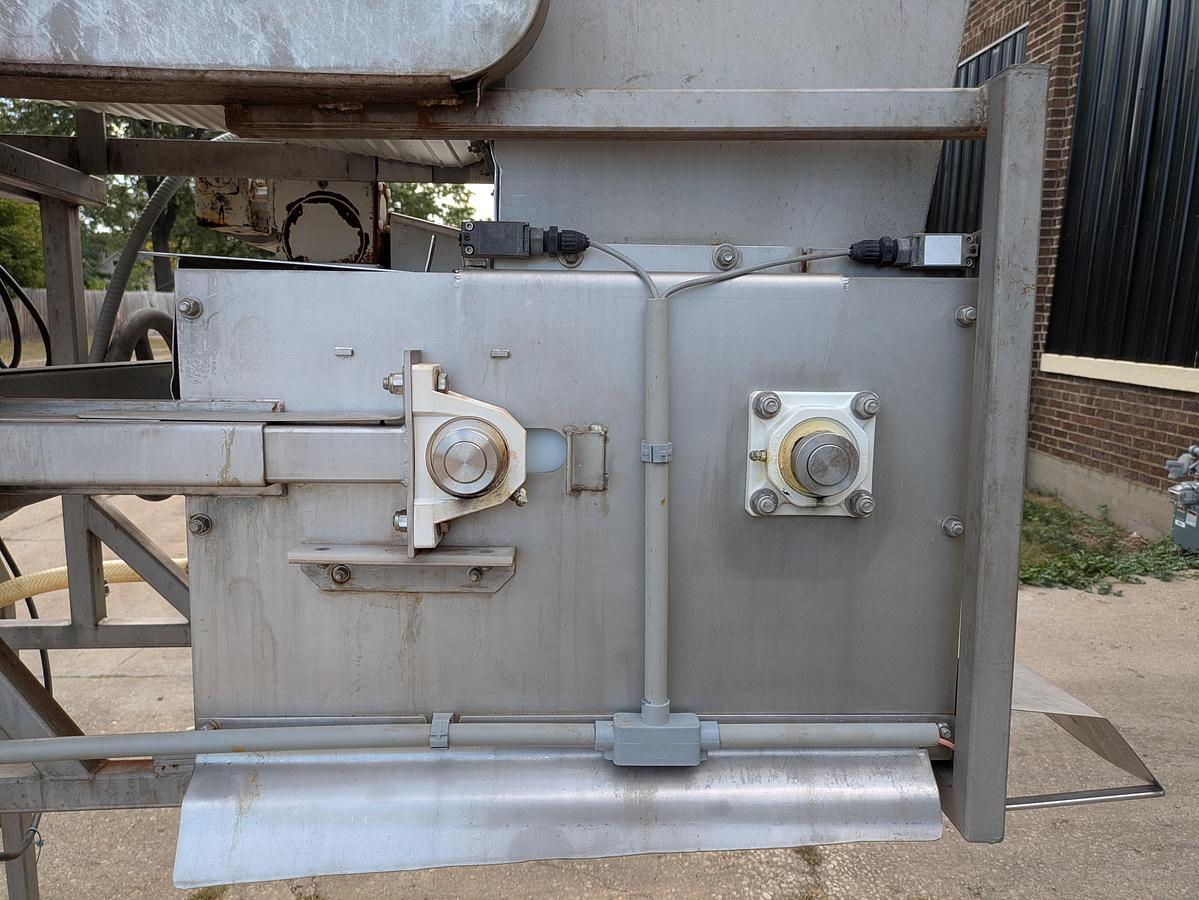

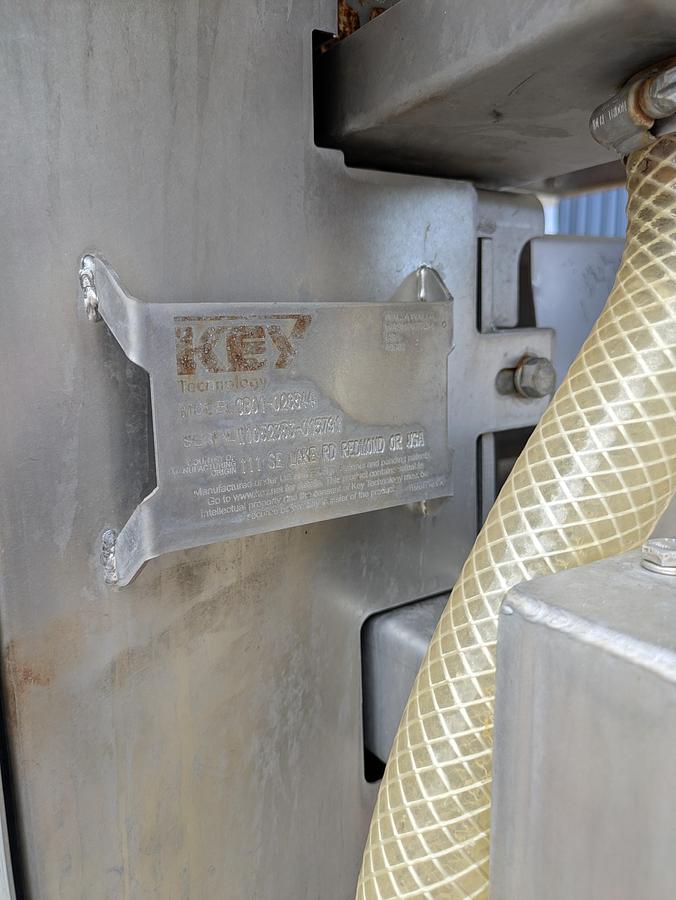

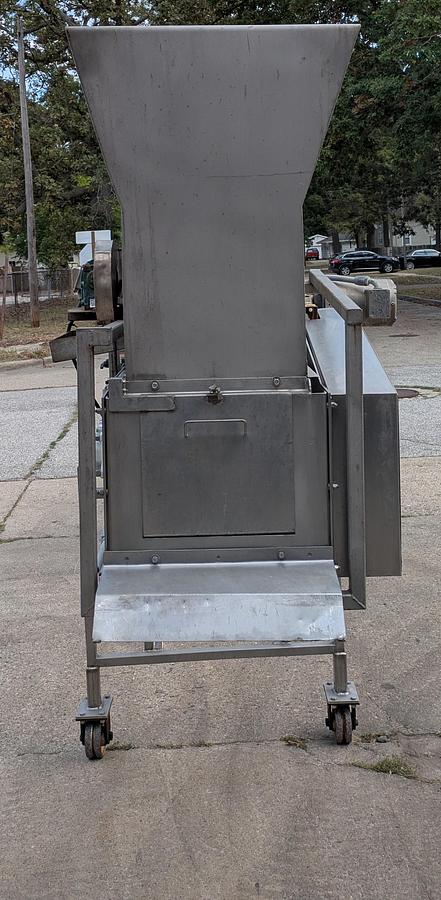

key technology cluster breaker fully adjustable minimum 1" max 4" opening

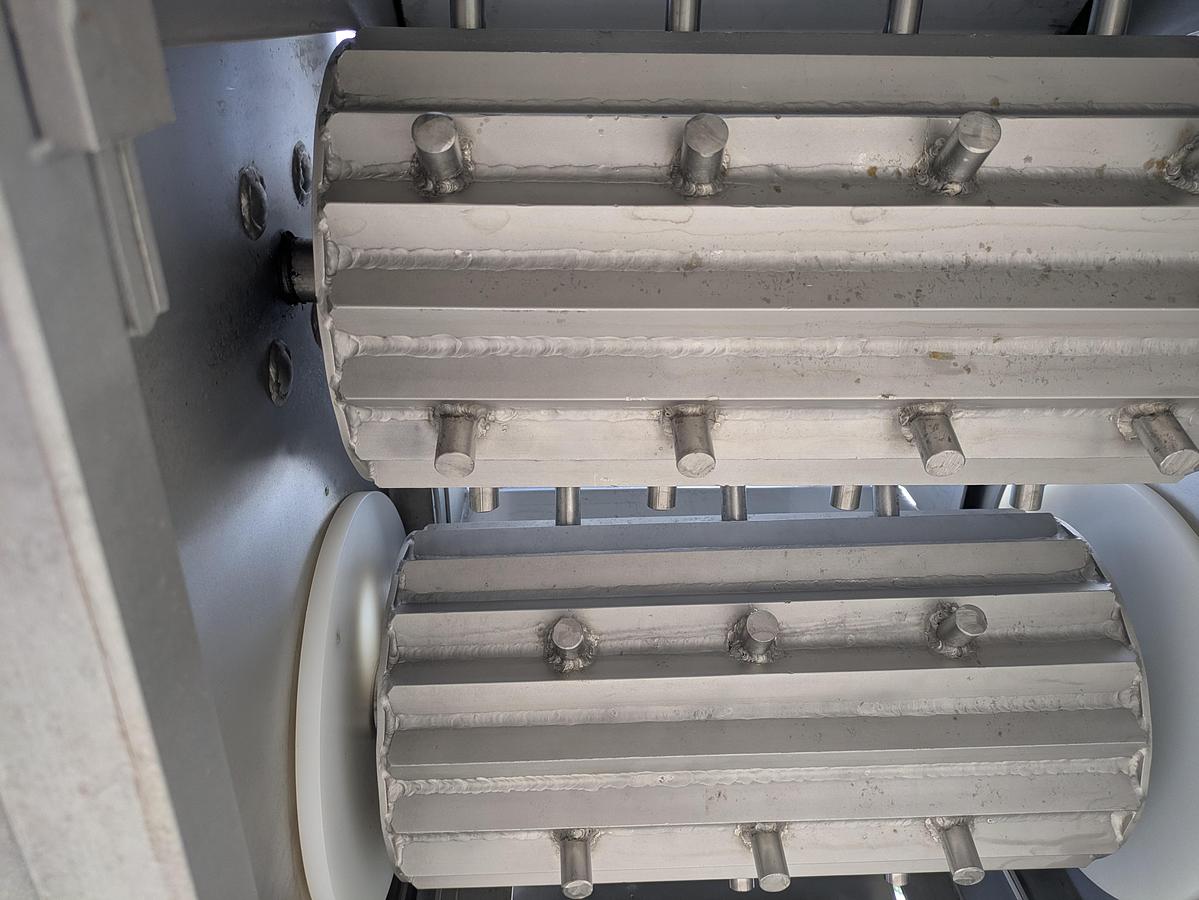

breaking drums are 18" wide and 10" in diameter

frame, stainless steel

belting, ribbed PVC

power, 3 phase 230/480v variable speed drive

mounted on 6" casters
